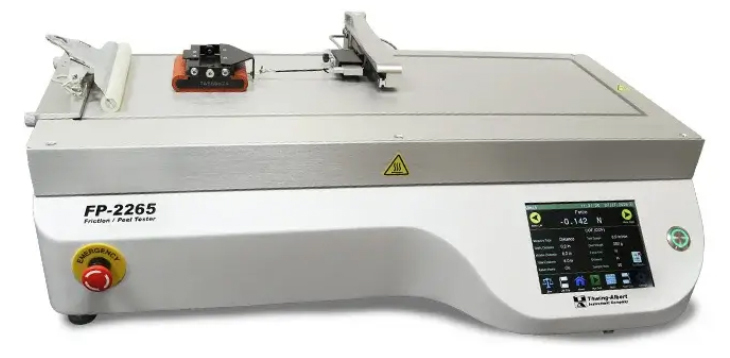

FP-2265 Friction and Peel Tester
Benchtop Coefficient of Friction Tester and Peel Tester
The FP-2265 Friction Peel Tester is the latest bench top coefficient of friction tester and peel tester from Thwing Albert. Designed specifically for quality control and R&D testing of plastic film, paper, paperboard, adhesives, labels, and flexible packaging materials.
It measures static and kinetic coefficient of friction, peel strength, seal strength, and light tensile strength up to 10kg (22 lbs). The FP-2265 operates as a stand alone instrument. No PC required. The addition of a new colour touchscreen and built-in pneumatic controls, make the FP-2265 faster to set up and easier to operate.
The FP-2265 Friction/Peel Tester replaces the FP-2260 and earlier models. The fixtures and load cells from the FP-2260, FP-2255, and FP-2250 are compatible.

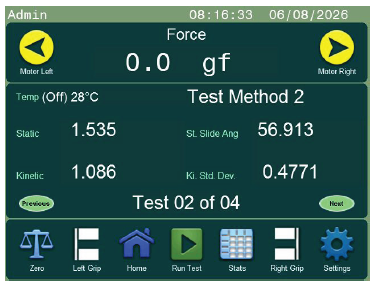

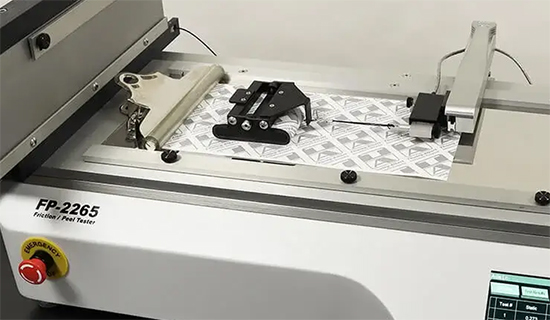

COF Test Mode — Coefficient of Friction
Measures the static coefficient of friction, kinetic coefficient of friction and slide angle. Tests can be configured by time, or distance, with results including kinetic COF standard deviation across the full test.
Standards: ASTM D1894 · ASTM D4521 · ISO 8295 · TAPPI T816 · TAPPI T549

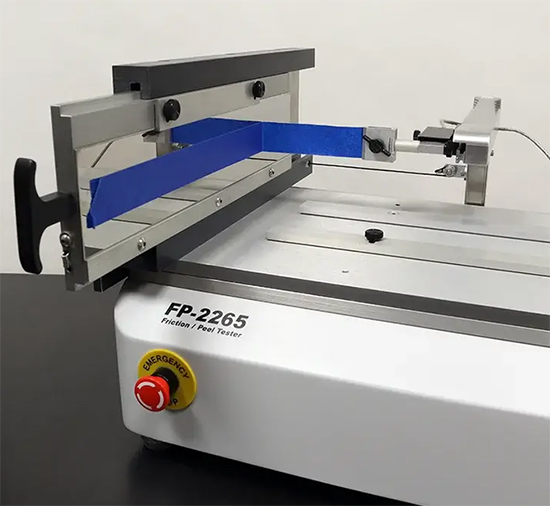

Peel Test Mode — Peel and Seal Strength
Tests the seal strength and peel adhesion of plastic film, paper, paperboard, adhesives, corrugated, labels, and packaging materials. Configurable for 180° peel, 90° peel, and T-peel tests. Results include peel average, high, low, and standard deviation.
Standards: ASTM F88 · ASTM D3330 · ASTM D1876 · ASTM D6862 · FINAT FTM 1–11

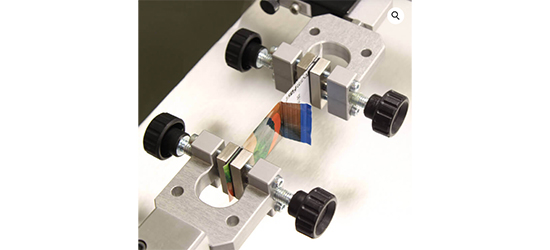

Tensile Test Mode — Light Tensile
Performs lightweight tensile tests up to 10 kg (22 lbs). Results include peak force, elongation at peak, and elongation at break. Available with manual or pneumatic tensile grips.
Standards: ASTM D882
| Features | |
|---|---|
| Store up to 30 saved test methods and 128 saved test results | Integrated pneumatic controls, no separate pneumatic controller needed |
| Colour touchscreen interface | Heated platen for elevated temperature testing up to 204.4°C (400°F) (optional) |
| Dual load cell capability (optional) | Universal Instrument Remote (UIR) control (optional) |
| Password protection with configurable security groups | Compatible with FP-2260, FP-2255, and FP-2250 fixtures, clamps, and load cells |
Technical Information
| Automatic load cell recognition | |
| Interchangeable 0.5, 1, 2, 5, and 10 kg load cells | |
| Force accuracy | ≥ 10% capacity: ±0.25% of measured value |
| < 10% capacity: ±0.025% of capacity | |
| Force resolution: 0.003% of load cell capacity | |
| Sample Rate: 50 or 60 samples per second | |
| Force units: Grams (g), Kilograms (kg), Newtons (N), Ounces (oz), Pounds (lb) | |
| Load cell position: X, Y and Z axes are fully adjustable | |
| Test area: 60 x 25.4 cm (23.6 × 10 in) | |
| Statistical analysis | Results include static COF, kinetic COF, slide angle, standard deviation of kinetic COF, peel average, high, low, and standard deviation, and tensile peak force, elongation at peak, and elongation at break. Statistical analysis (avg, max, min, std dev) is available across all modes. |
| Test data reported as 80 column formatted or csv data, with Sample ID and Report ID, to the following outputs: | Host device connected to the PC USB connector |
| Device connected to the Printer RS232 connector | |
| USB flash drive (8 GB max) | |
| Compatible with optional MAP4 Materials Testing Software |
| Test speed range: 2.54–279.4 cm/min (1–110 in/min) | |
| Test speed accuracy: | ≤139.7 cm/min (55 in/min): ±0.25 cm/min (0.1 in/min) |
| >139.7 cm/min (55 in/min): ±0.5% of speed | |
| Test distance range: 0.3–39.4 cm (0.1–15.5 in) | |
| Test distance accuracy: ±0.05 mm (0.002 in) | |
| Test distance resolution: 0.0004 mm (0.000016 in) | |
| Test times: 0.1–99 sec, COF & Peel | |
| Auto return/stop, default mode | |
| Optical travel limit switches |
| The FP-2265 accepts all existing fixtures and load cells from the FP-2260, FP-2255, and FP-2250. Labs upgrading from any of these models can continue using their current tooling with confidence. | |
| COF Sleds | All standard and custom COF sleds — 200 g, 500 g, 1000 g, 3 lb and variable weights |
| Peel Fixtures | 180° peel, 90° peel, T-peel, and tray peel fixtures |
| Seal Strength Clamps | Manual and pneumatic seal strength clamps for ASTM F88 |
| Load Cells | 0.5, 1, 2, 5, and 10 kg — all interchangeable with automatic recognition |
| Tensile Grips | Manual and pneumatic tensile grips |
| MAP4 Software | Full MAP4 compatibility via USB |
| The FP-2265 supports testing to the following industry standards: | |
| Standard | Test Method |
| ASTM D1894 | COF — Plastic Film & Sheeting |
| ASTM D4521 | COF — Corrugated and Fiberboard |
| ASTM D2534 | COF — Kinetic Friction for Wax Coatings |
| ASTM F88 | Seal Strength — Flexible Barrier Material |
| ASTM D3330 | Peel Adhesion — Pressure Sensitive Tape 180° |
| ASTM D6862 | Peel Resistance — Adhesives 90° |
| ASTM D6252 | Peel Adhesion — Pressure Sensitive Label Stocks 90° |
| ASTM D1876 | T-Peel Resistance of Adhesives |
| ASTM D882 | Tensile Properties — Thin Plastic Sheeting |
| ISO 8295 | COF — Plastics |
| TAPPI T816 | COF — Corrugated & Paperboard |
| FINAT FTM 1, 2, 3, 10, 11 | Label & Pressure Sensitive Adhesive |
| TLMI L-IA1, L-IA2, L-IA3 | Label & Tag |
| PSTC 101 (A–F), 4, 15 | Pressure Sensitive Tape |
| AFERA 4001 P11 | Adhesive Tape |
| Product Dimensions | 62.2 x 43.8 x 13.3 cm (24.5 x 17.25 x 5.25 in) |
| Shipping Dimensions | 73.7 x 53.3 x 38.1 cm (29 x 21 x 15 in) |
| Net Weight | 18.4 kg (40.6 lb) |
| Gross Weight | 23.6 kg (52 lb) |
