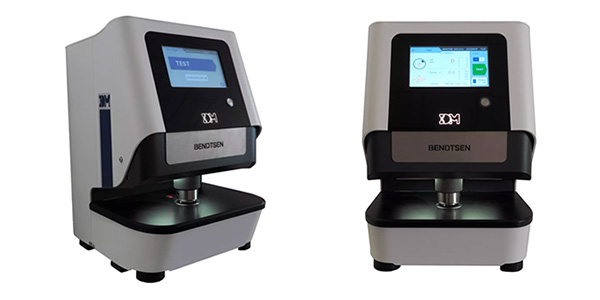

Rycobel Bendtsen Roughness and Air Permeance Tester
Measures roughness and air permeance according to the Bendtsen method
Measures the roughness and air permeability according to the Bendtsen method and Gurley porosity is calculated from the measured values.
Standards: ISO 5636-3, ISO 8791-2, TAPPI UM 535, SCAN P21, SCAN P60
Built on a sturdy aluminium frame, the device has a built in touch-screen and microprocessor and equipped with up to two measuring heads, for top and bottom roughness measurements and for air permeability. Fully automated measuring cycle with a flow rate range is 0 – 3000 ml/min. as standard. Other flow rates ranges are available on request.
Available in three configurations:
- 1 x measuring head – Roughness
- 1 x measuring head – Porosity
- 2 x measuring heads – 1 x Roughness and 1 x Porosity.
Test description – Surface roughness:

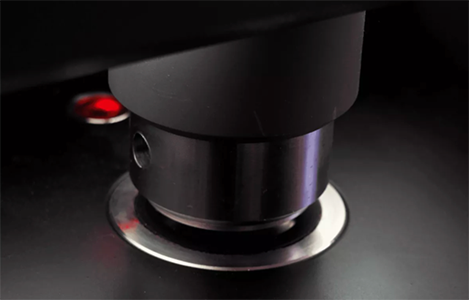

The sample is placed below the measuring head. The measuring head is lowered onto the sample and gently clamped, by pushing the start button. The test starts, and when the preset flow rate (e.g. 1.47 ml/min) is stable, the measurement value is displayed. The test time is adjustable from 1 – 40 seconds. The sample is released after test and the measuring head returns to the resting position.
Test description – Air permeability:
The procedure is as above and the Gurley values are calculated according to the standard and, as the default, are displayed in Gurley seconds.
| Fully automated measuring cycle | Flow rate of 0-3000 ml / min (other or extended flow rates upon request) |
| Automated system for aligning measuring and positioning head on sample under constant pressure of 98Kpa. (490 kPa optional) | Test pressure selectable according to standard: 0.74kPa, 1.47kPa, 2.20kPa |
| Statistic with graphs, max, min, mean, standard deviation | Photocell detection of the sample, with automatic start of the measurement |
| RS-232 interface for connection to management and control programs USB connection for maintenance and USB printer | Glass measuring surface |
| Maintenance Menu, Set-Up and Calibration | Two result tables with a maximum of 10 result types and 20 test results per table |
| Measuring ranges: | 0 - 3.000 ml/min flow rate |
| Pressure difference: ±0.5% of the final value | |
| Measuring accuracy: | Pressure differential : ±0.005kPa linear |
| Flow : ±0.5% of the final value | |
| Accuracy of test duration: ±0.5s | |
| Roughness: | Measuring land: Ø31.5mm,150μm, 267g |
| Test duration, Dwell time: 1-40 seconds (adjustable) | |
| Air permeability: | Measuring area : 10 ± 0.2 cm² |
| Test duration, , Dwell time: 1 -40 seconds (adjustable) | |
| Display in ml/min or μm/Pa*sec | |
| Gurley Value: Seconds |
| Width | 270 Net; 450 Gross |
| Depth | 680 Net; 800 Gross |
| Height [mm] | 600 Net; 800 Gross |
| Weight [kg] | 28 Net; 43 Gross |
| Electricity | 110-230 V, 50-60 Hz AC |
| Air | 600 kPa |
